LOADER LM946

Available Options
Quantity
Category:
Quantity

Description

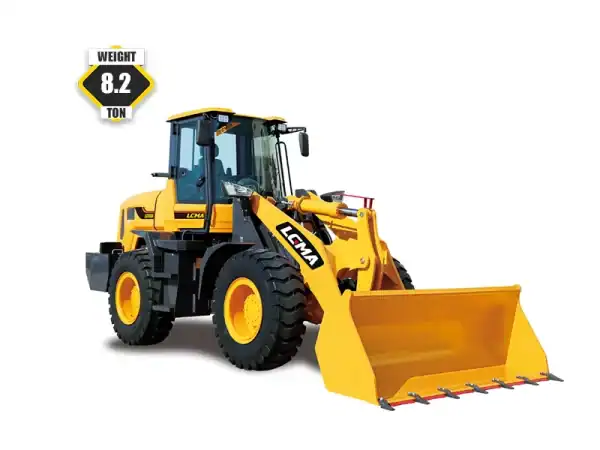

The 8.2 Ton LM946 Wheel Loader, a dynamic and robust vehicle, is crafted for high efficiency and precision in challenging construction tasks. With its 4 & 4 speed transmission, this loader offers speed for brisk operations and precision for detailed tasks. The upgraded NVH cabin ensures operator comfort by reducing noise and vibration. Equipped for tough environments and demanding jobs, the LM946 features:

  • Dynamic 4 & 4 Speed Transmission
  • Upgraded NVH Cabin Comfort
  • Robust 4WD System
  • Climate-Controlled A/C
  • High-Definition Rear Camera
  • Ergonomic Suspension Seat
  • Optimized High Departure Angles
  • Enhanced Triple Layers Articulating Hinge

Included in Price:

  • Hydraulic Quick Hitch
  • GP Bucket
  • 4-in-1 Bucket
  • Pallet Fork
  • 24 Months / 2000 Hours Warranty
  • Australian-Backed Parts Support

LM946 Wheel Loader: Detailed Specifications and Features

lm946 wheel loader

BASIC PERFORMANCE PARAMETERS



Engine Power

92 kW / 123 HP

Operating Weight

8,200 kg

Bucket Capacity

1.5 – 2.5 m³

Rated Load

2,800 kg

ENGINE



Engine Model

Weichai Deutz WP6G125

Engine Pattern

In-line, 6 cylinder

Rated power / speed

92 kW / 2,200

Engine Weight

650 kg

DRIVES AND BRAKES



Service brake

Air hydraulic disc brake

Parking brake

Hand brake

ELECTRICAL SYSTEM



Operating voltage

24V

HYDRAULIC SYSTEM



Operating type

Hydraulic

Lifting time

6.5 S

Falling time

5.5 S

TRANSMISSION



Type

Hydraulic torque converter

Pattern

Automatic

Gear shift

Double H / L

Axle

AWD, 2.8T hub reduction

UNDERCARRIAGE



Tyre

17.5-25

MACHINE DIMENSIONS



Overall dimension

6,820 x 2,130 x 3,040 mm

Wheel base

2,710 mm

Wheel track

1,690 mm

Bucket width

2,400 mm

Max. dumping height

3,800 mm

Max. dumping distance

650 mm

Turning radius

6,000 mm
