Description
Tractor Scraper ft

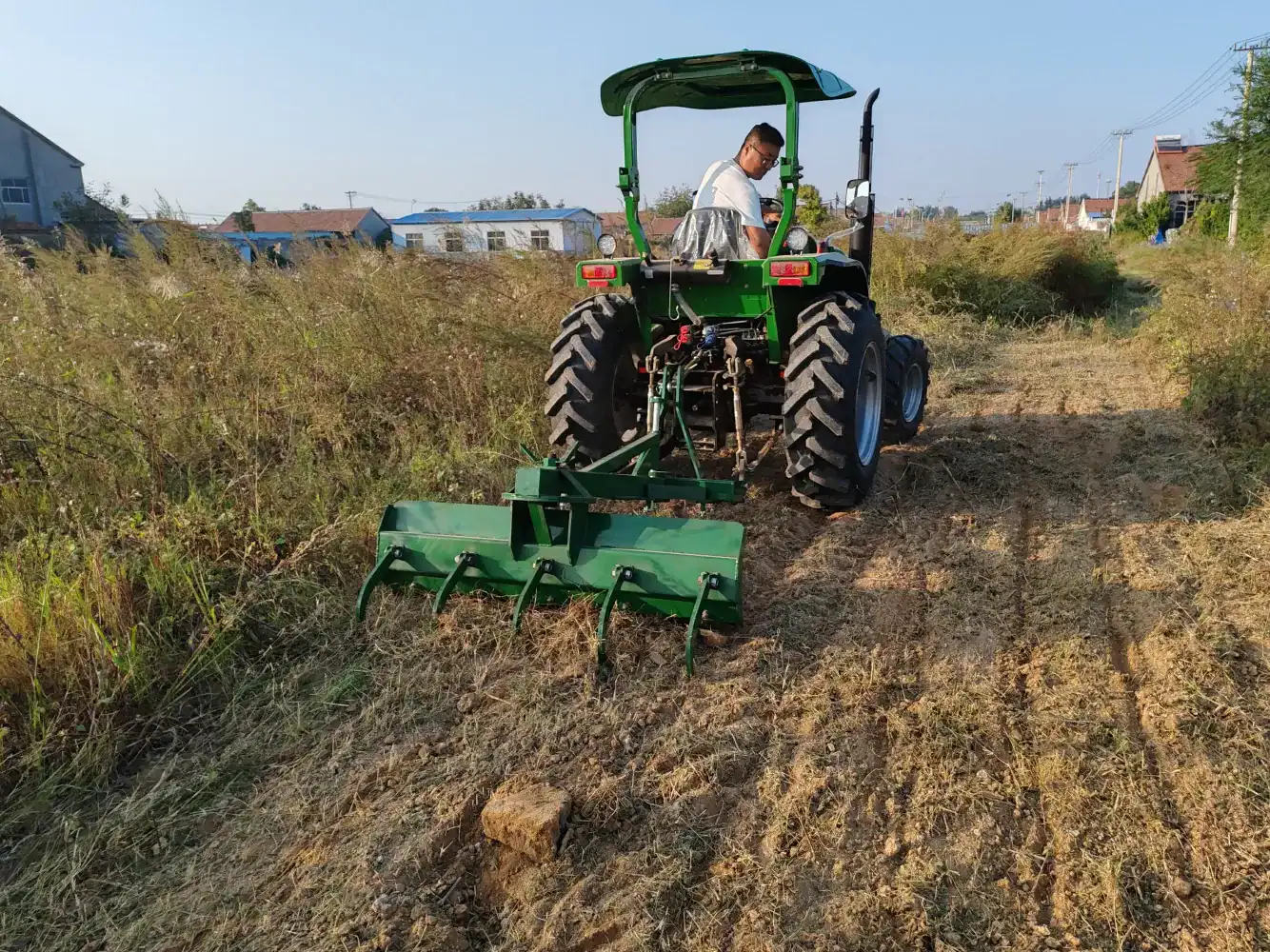

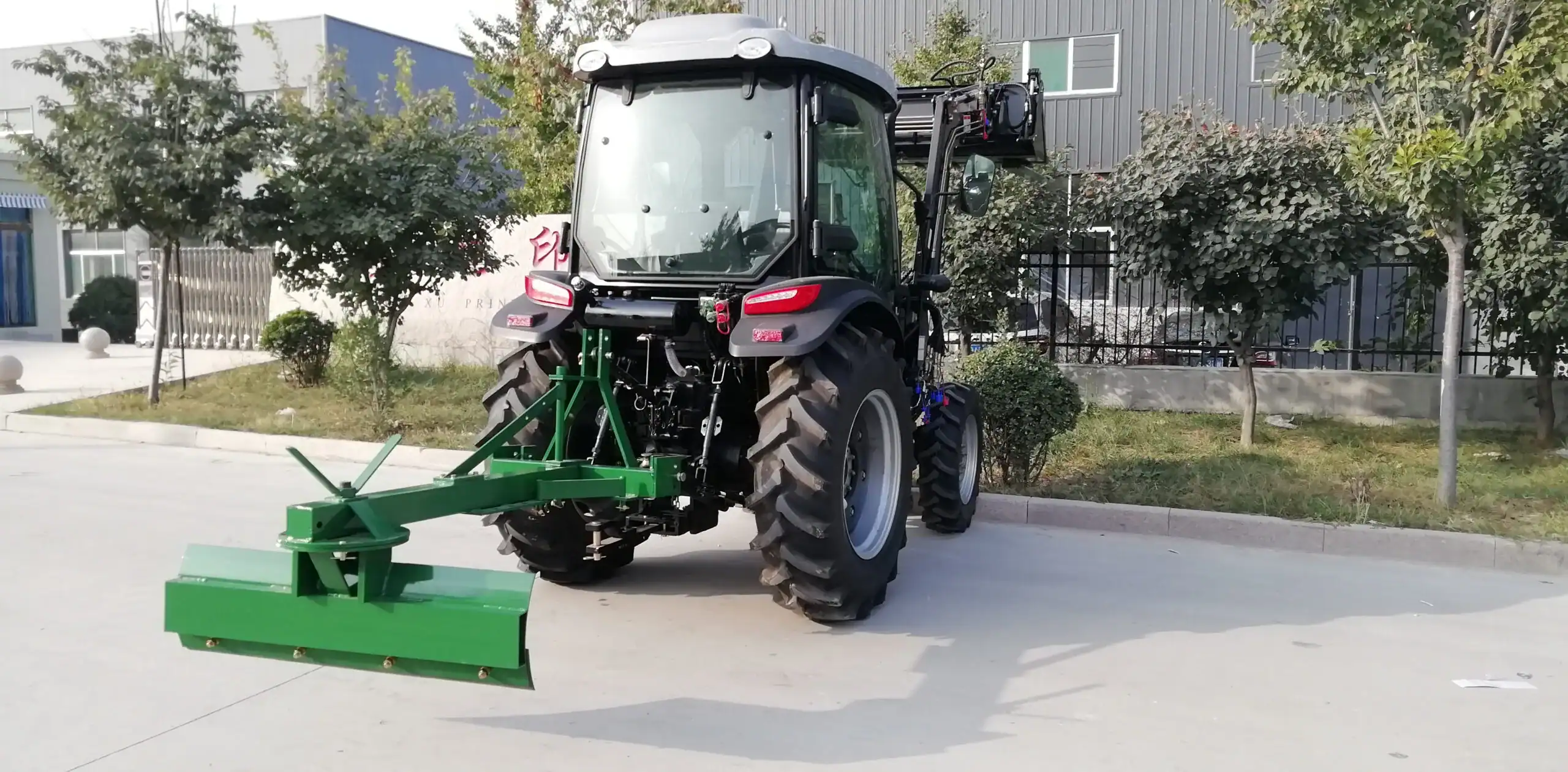

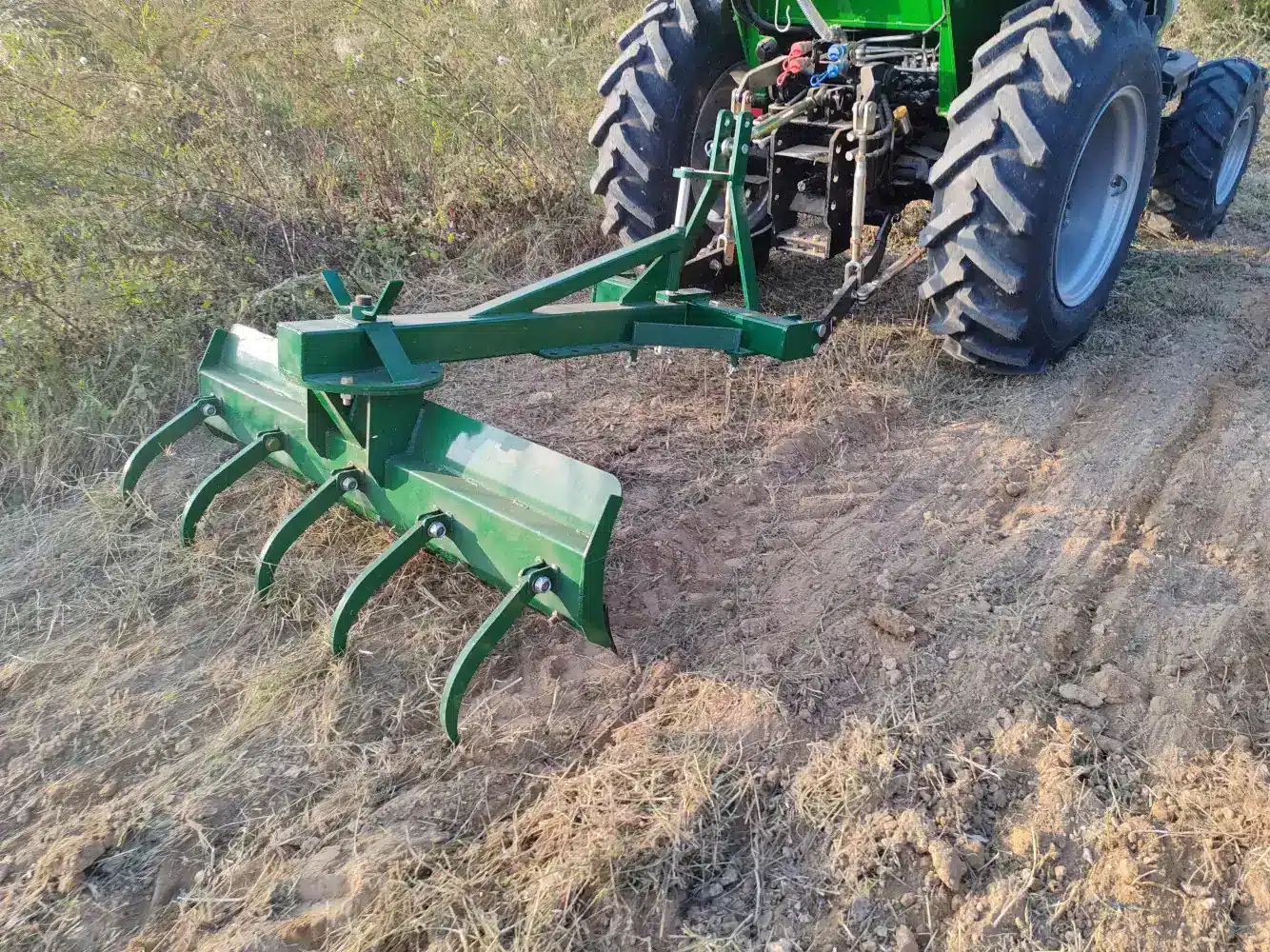

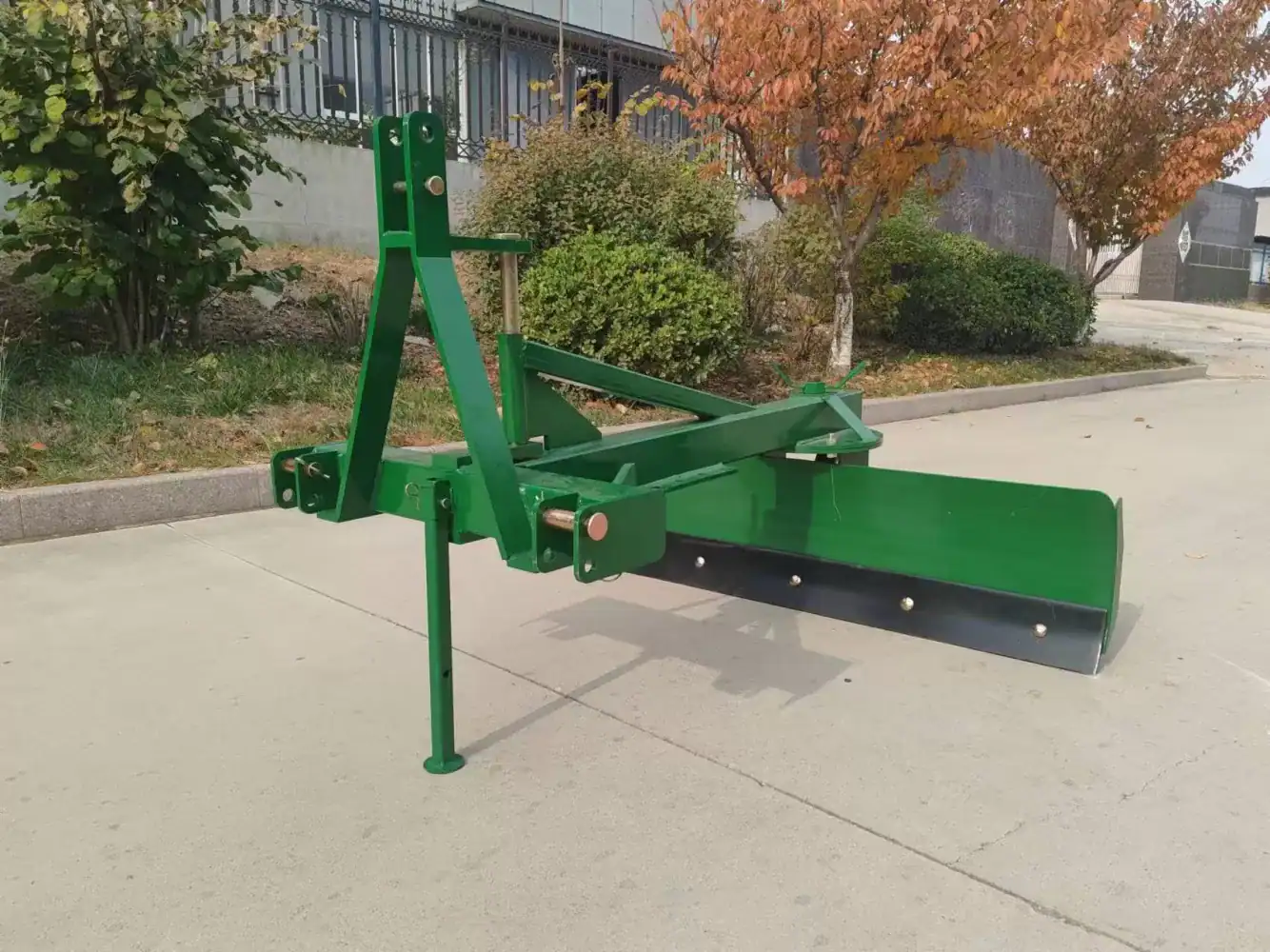

Tractor Scraper 5ft with swivel and Off set adjustments. The tine rippers are ideal for ripping the surface down to 100mm before scraping. These Scraper Grader Blades are ideal for on-farm earthworks like building roadways, leveling channel banks and creating drains and more.
5ft with swivel and Off set adjustments. Includes 5 tine rippers
For use with these tractors and others – (click on item for details) | |||
30hp tractor AK304 | 40hp tractor AK404 | 40hp tractor DQ404 |
Scraper Blade | ||||
Key Features | ||||
1.360 degree adjustable cutting blade and off-center settings | ||||
2.off-settable cutting blade | ||||
3.Ripper is an option | ||||
4.Strong blade with replacement cutting blades available | ||||
5.Good for grading a road,leveling soil or clearing paths | ||||
6.Rotate the ripper and blade 180 degrees and a multi-type ripper for loosening top soil for easier grading. | ||||
Model | GB-120 | GB-150 | GB-180 | GB-210 |
Working width | 1200mm | 1500mm | 1800mm | 2100mm |
No of rippers | 4 | 5 | 6 | 7 |
weight | 150 | 180 | 195 | 230 |
matched power | 15-25hp | 20-30hp | 25-40hp | 30-80hp |
Linkage | Tractor three point suspension linkage |
